Rotary Water Well Drilling Rig, 150 Meter Water Drilling Machine, XY-1 Water Drilling Machine
Description of XY-1 Customized Hot Selling Drilling Machine,100 Meters 150 Meters Water Well Drilling Rig
XY-1 is widely used for Water well drilling, Geological Exploration and Prospecting, Geothermal wells, Blast-hole, Irrigation projects, etc.XY-1 is widely used for Water well drilling, Geological Exploration and Prospecting, Geothermal wells, Blast-hole, Irrigation projects, etc.
XY-1 Customized Hot Selling Drilling Machine,100 Meters 150 Meters Water Well Drilling Rig parameters
| Drill | Swivel Head | ||
Drilling depth
| Max.150m | Spindle speed
| 1010,790,470,295,140(r/min) |
Hole diameter
| Max.150m | Spindle stroke | 450kmm |
| Drill rod diameter | 42.50mm | Spindle pull-down | Max.15KN |
| Angle range | 90-75 | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump | ||
| Model | YBC-12/125 | Model | Horizontal reciprocating single-acting piston pump |
| Rated pressure | 12.5Mpa | Working pressure | Max. 1.25Mpa |
| Flow speed | 8ml/r | ||
| Rated speed | 1500r/min | ||
| Hoist | Power(diesel) | ||
| Max. lifting capacity | 15KN | Model(diesel engine) | 1105 |
| Hoisting drum revolution | 121,76,36(r/min)
| Rated power | 18KW |
| Drum diameter | 140mm | Rated speed | 2200r/m |
| WEIGHT | AROUND 600KG | ||
| SIZE | 1620*970*1560mm |
Features of XY-1 Customized Hot Selling Drilling Machine,100 Meters 150 Meters Water Well Drilling Rig

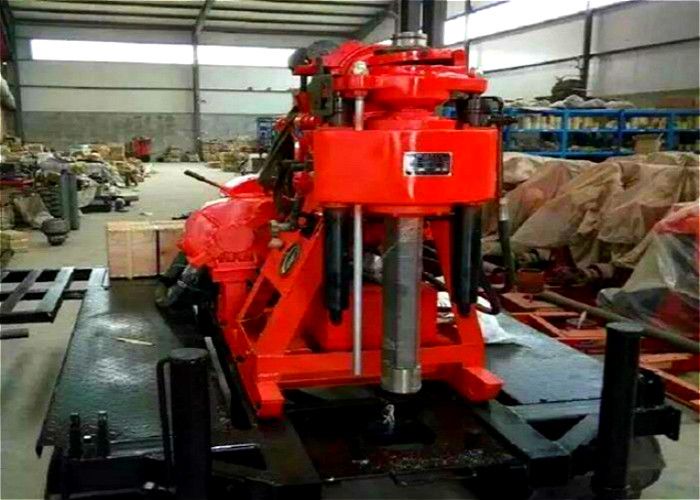

Small core drill rig XY-1water well drilling rig machine is a compact spindle drilling machine. Rotary drilling rig is mainly used for shallow hole core drilling with diamond or tungsten carbide bits. Geological drilling rig can also be used for engineering geological survey and injection in the fields of railway, highway,bridge, irrigation works, dam and etc. Easy to operate and maintain.
Our Service XY-1 Customized Hot Selling Drilling Machine,100 Meters 150 Meters Water Well Drilling Rig
1, 24 hours online .Your inquiry will be quick reply on 24 hours .
Also can go through all questions with you by any online chatting tools
2,Professionally introduction,details pictures and working video to show machine
| Drill | Swivel Head | ||
Drilling depth
| Max.150m | Spindle speed
| 1010,790,470,295,140(r/min) |
Hole diameter
| Max.150m | Spindle stroke | 450kmm |
| Drill rod diameter | 42.50mm | Spindle pull-down | Max.15KN |
| Angle range | 90-75 | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump | ||
| Model | YBC-12/125 | Model | Horizontal reciprocating single-acting piston pump |
| Rated pressure | 12.5Mpa | Working pressure | Max. 1.25Mpa |
| Flow speed | 8ml/r | ||
| Rated speed | 1500r/min | ||
| Hoist | Power(diesel) | ||
| Max. lifting capacity | 15KN | Model(diesel engine) | 1105 |
| Hoisting drum revolution | 121,76,36(r/min)
| Rated power | 18KW |
| Drum diameter | 140mm | Rated speed | 2200r/m |
| WEIGHT | AROUND 600KG | ||
| SIZE | 1620*970*1560mm |
Our Service XY-1 Customized Hot Selling Drilling Machine,100 Meters 150 Meters Water Well Drilling Rig
1, 24 hours online .Your inquiry will be quick reply on 24 hours .
Also can go through all questions with you by any online chatting tools
2,Professionally introduction,details pictures and working video to show machine
