150Meters Core Drill Rig, XY-1A Core Drill Rig, XY-1A Rig

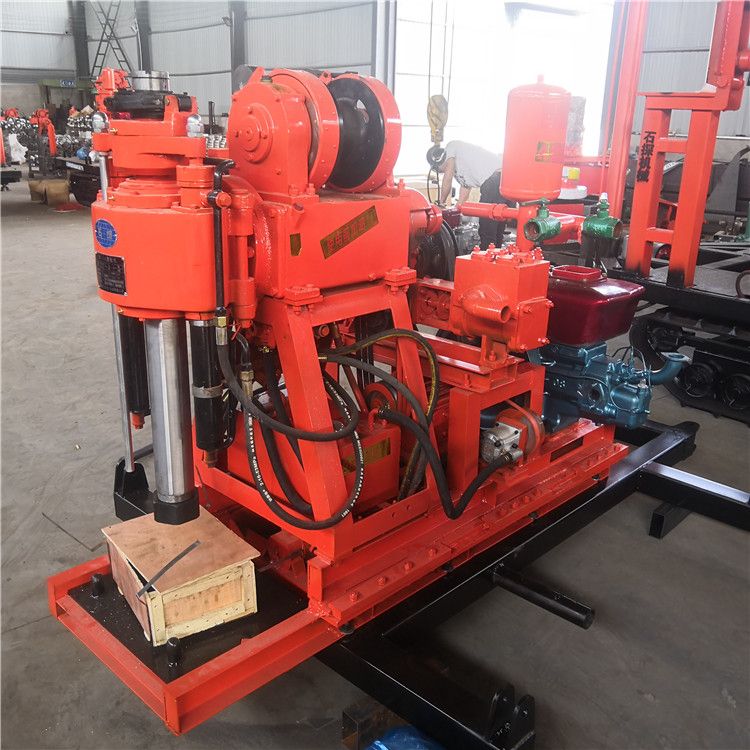

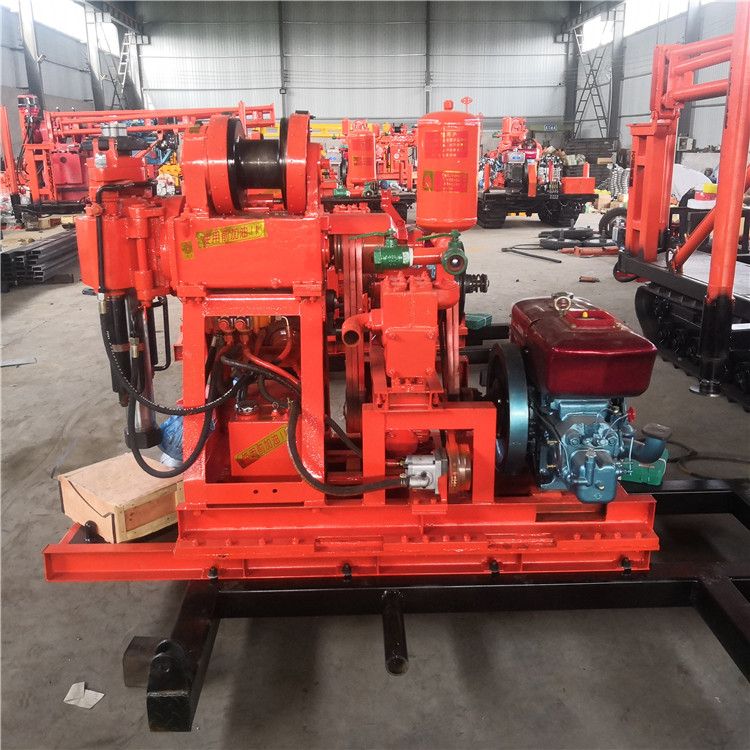

Introduction of Shitan XY-1 A 150 Meters Engineering Core Drill Rig
This rig is light shallow hole drill rig with hydraulic automatic feeding mechanism.It is mainly applied to the exploration, geophysical exploration, road and building exploration and small water well drilling, etc. is suitable for drilling water well, soil exploration, geophysical exploration, road and building exploration and drilling blasting holes.
High Working Efficiency Shitan XY-1 A 150 Meters Engineering Core Drill Rig parameters
| Drill | Swivel Head | ||
Drilling depth
| Max.150m | Spindle speed
| 1010,790,470,295,140(r/min) |
Hole diameter
| Max.150m | Spindle stroke | 450kmm |
| Drill rod diameter | 42.50mm | Spindle pull-down | Max.15KN |
| Angle range | 90-75 | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump | ||
| Model | YBC-12/125 | Model | Horizontal reciprocating single-acting piston pump |
| Rated pressure | 12.5Mpa | Working pressure | Max. 1.25Mpa |
| Flow speed | 8ml/r | ||
| Rated speed | 1500r/min | ||
| Hoist | Power(diesel) | ||
| Max. lifting capacity | 15KN | Model(diesel engine) | 1105 |
| Hoisting drum revolution | 121,76,36(r/min)
| Rated power | 18KW |
| Drum diameter | 140mm | Rated speed | 2200r/m |
| WEIGHT | AROUND 600KG | ||
| SIZE | 1620*970*1560mm |
XY-1 A 150 Meters Engineering Core Drill Rig main features
With hydraulic automatic feeding device, elevated drilling efficiency. 2. The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown. 3. Centralized handles, easy operation, safe and reliable. 4. The drilling machine, pump and diesel engine are installed on a common base frame in order to have a compact structure and occupy small field area. 5 lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.
OEM XY-1 A 150 Meters Engineering Core Drill Rig FAQ
1.. Are you factory or trading company?
We are direct factory ,we support OEM different kinds of drilling rigs.
2. What kind of projects you will work for?
Water well, Borehole, Exploration coring, Foundation Piling, Blast holes, Geothermal heat project or others?
3. Max drilling depth you want.
100m, 150m, 200m, 300m, or other depth.
4. The Min and Max borehole diameter you need.
Like Max 200mm, Min 75mm.
5. Geological condition of the working site if you know about it.
Soft ground like soil, mud, sand?
Hard ground like hard rocks?Or mixed?
High Working Efficiency Shitan XY-1 A 150 Meters Engineering Core Drill Rig parameters
| Drill | Swivel Head | ||
Drilling depth
| Max.150m | Spindle speed
| 1010,790,470,295,140(r/min) |
Hole diameter
| Max.150m | Spindle stroke | 450kmm |
| Drill rod diameter | 42.50mm | Spindle pull-down | Max.15KN |
| Angle range | 90-75 | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump | ||
| Model | YBC-12/125 | Model | Horizontal reciprocating single-acting piston pump |
| Rated pressure | 12.5Mpa | Working pressure | Max. 1.25Mpa |
| Flow speed | 8ml/r | ||
| Rated speed | 1500r/min | ||
| Hoist | Power(diesel) | ||
| Max. lifting capacity | 15KN | Model(diesel engine) | 1105 |
| Hoisting drum revolution | 121,76,36(r/min)
| Rated power | 18KW |
| Drum diameter | 140mm | Rated speed | 2200r/m |
| WEIGHT | AROUND 600KG | ||
| SIZE | 1620*970*1560mm |
Core Drill Rig FAQ
1.. Are you factory or trading company?
We are direct factory ,we support OEM different kinds of drilling rigs.
2. What kind of projects you will work for?
Water well, Borehole, Exploration coring, Foundation Piling, Blast holes, Geothermal heat project or others?
3. Max drilling depth you want.
100m, 150m, 200m, 300m, or other depth.
4. The Min and Max borehole diameter you need.
Like Max 200mm, Min 75mm.
5. Geological condition of the working site if you know about it.
Soft ground like soil, mud, sand?
Hard ground like hard rocks?Or mixed?
