China Drilling Rig Factory Supply GK 200 High efficiency Soil Testing Drilling Machine

200 Meters Soil Test Drilling Machine, Portable Soil Test Drilling Machine, Flexible Water Well Drill Rig

Quick quote

Share to：

Hits：1167 times

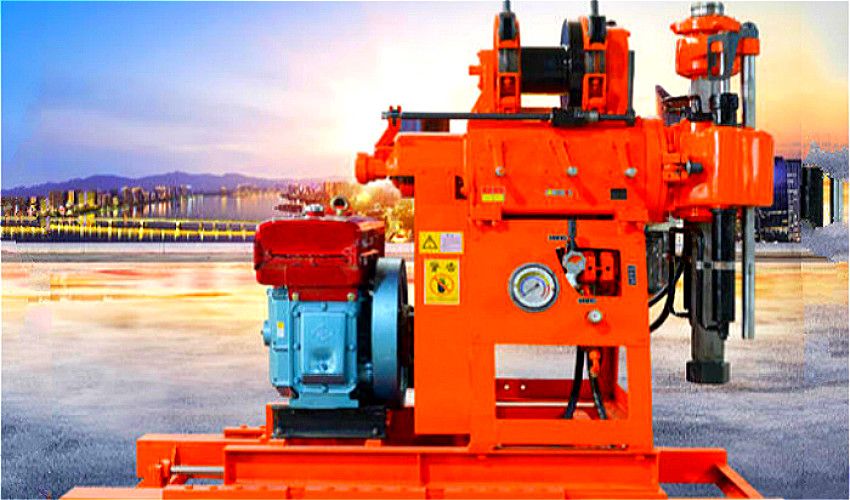

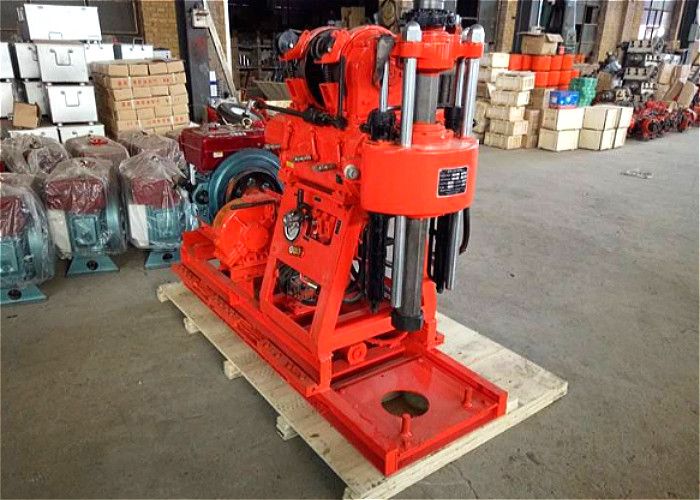

China Drilling Rig Factory Supply GK 200 High efficiency Soil Testing Drilling Machine Introduction

This is widely utilized and featured in high power and hoisting load(2T), large torque transmission, etc. The rotating speed of vertical hexagonal spindle varies between 71r/min-825r/min. It is suited for the geotectonic survey, geological core drilling, small hole drillings for grout, blast and water well in railway, water coservancy, bridge, dam foundation and other constructions. Diamond drill vit, alloy drill bit and steel roller drill bit are available for drilling according to different geological structures.

China Drilling Rig Factory Supply GK 200 High efficiency Soil Testing Drilling Machine Parameter:

Rated drilling depth	200m
Rated boring diameter	200mm
Vertical shaft rotation speed (4 shifts)	118, 236, 505, 1010.r/min
Vertical shaft max. output torque	1500N*m
Max. hositing weight single line)	17KN
Drilling rod diameter	42mm
Drilling dip angle	90~75°
Drill outside diameter (LBH)	14336971273mm
Drill weight	500kg
max. boring diameter	300mm

GK-200 Meters Depth Portable Mini Flexible Water Well Drill Rig / Soil Testing Machine Feature:

1. With hydraulic automaatic feeding device, elevated drilling efficiency.

2. Large torque and drilling diameter.

3. With a spherial jaw holding mechanism and the rod replacement without breakdwn, high efficiency.

4. Compact structure, small volume, lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.

5. Adoping large drive pipe, double guide rod, increase the stability.

Our Service for China Drilling Rig Factory Supply GK 200 High efficiency Soil Testing Drilling Machine

1, Small order is aceptable.
2, Good service and low price.
3, 12 Months quality guarantee.
4, Any third party testing is accepable.
